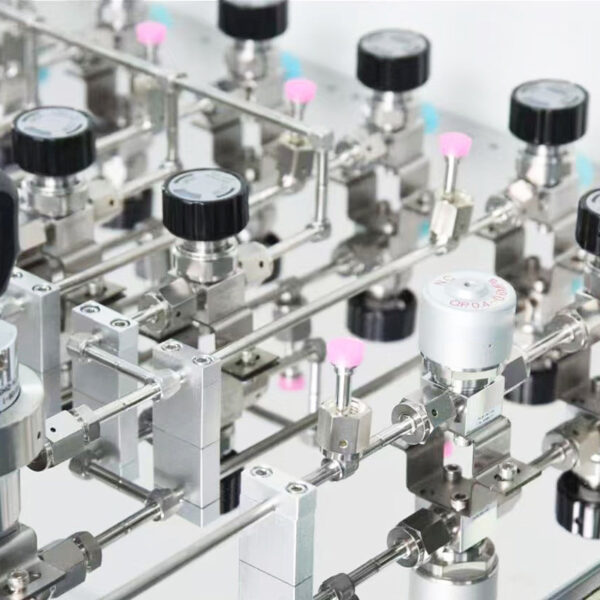

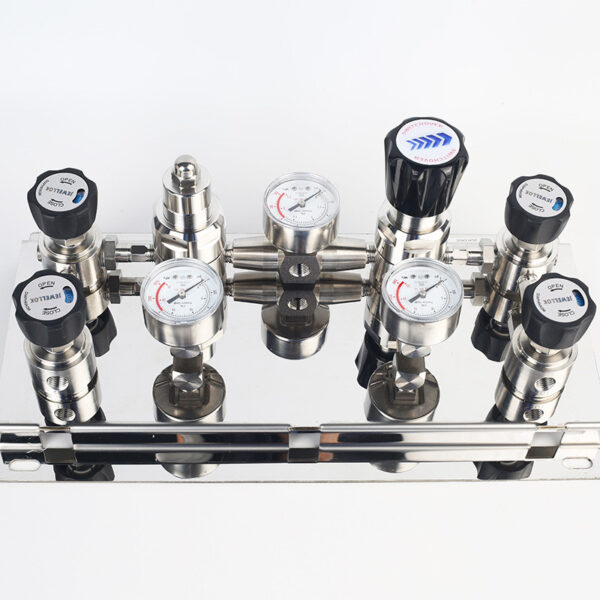

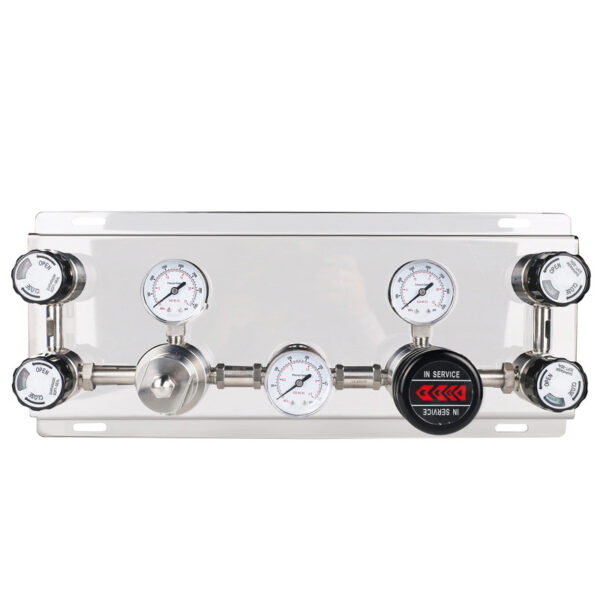

JW-300 Semi-Automatic Specialty Gas Changeover Panel

JW-300 Semi-Automatic Specialty Gas Changeover Panel for managed cylinder-bank supply and source switching. Confirm gas, pressure, flow, materials and connections for your project.

Request a quotation

JW-300 Semi-Automatic Specialty Gas Changeover Panel is part of LGF’s laboratory gas manifold and changeover equipment range for managed cylinder-bank supply and source switching. The semi-automatic specialty gas changeover panel configuration should be compared with the specified gas, pressure and flow before it is added to the equipment schedule.

Technical details from the product listing

  • Listed outlet pressure ranges: 0~25, 0~50, 0~100, 0~150 , 0~250psig
  • The maximum input pressure of 20.7Mpa (3000psi), corrosion, clean workshop assembly test, suitable for laboratory, high purity gas such as gas analysis.
  • 1) Max. Inlet Pressure: 3000, 2200Psi
  • 2) Max. Outlet Pressure: 25, 50, 100, 150, 0~250Psi
  • 1) Pressure regulator for special gas
  • 2) Equipped relief pressure valve
  • 3)Pressure regulator and pipe through the pressure test and leakage test

What to confirm for your laboratory gas system

Confirm the exact JW-300 ordering code and available options against the current product drawing before purchase. Selection depends on the complete gas path, the operating conditions and the installation interface.

  • Gas and cylinder connection standard
  • Inlet and required outlet pressure
  • Peak and standby flow
  • Manual, semi-automatic or automatic switching logic

For an application-specific quotation, provide the gas or media, source condition, target pressure and flow, end connection and project location. Review the related selection and system guidance, then send LGF your specification.
