JW-300-CCB Clean Connection Gas Cabinet is part of LGF’s laboratory specialty gas cabinet equipment range for enclosed source-side gas delivery and controlled distribution. The clean connection gas cabinet configuration should be compared with the specified gas, pressure and flow before it is added to the equipment schedule.

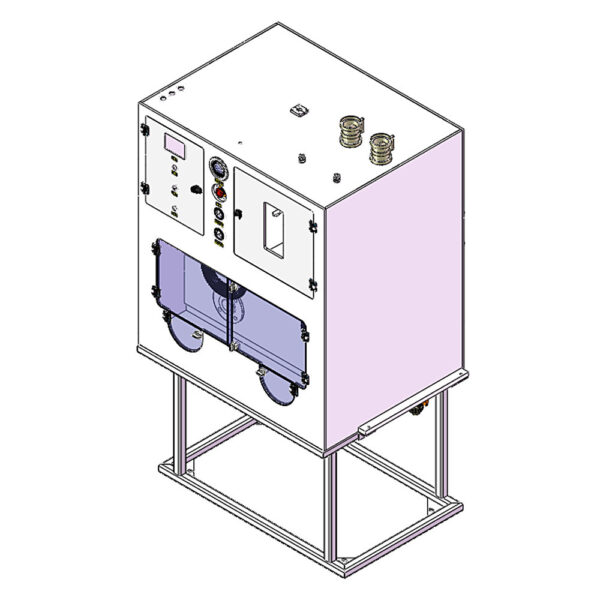

Product drawing and available configuration
The source listing provides product photographs or dimensional drawings for this configuration. Review the image set together with the current datasheet to confirm the exact dimensions, end connections and material before specifying a part.
What to confirm for your laboratory gas system
Confirm the exact JW-300-CCB ordering code and available options against the current product drawing before purchase. Selection depends on the complete gas path, the operating conditions and the installation interface.
- Gas identity and hazard class
- Number and size of cylinders or sources
- Purge, ventilation and shutdown interfaces
- Control mode and site utilities
For an application-specific quotation, provide the gas or media, source condition, target pressure and flow, end connection and project location. Review the related selection and system guidance, then send LGF your specification.

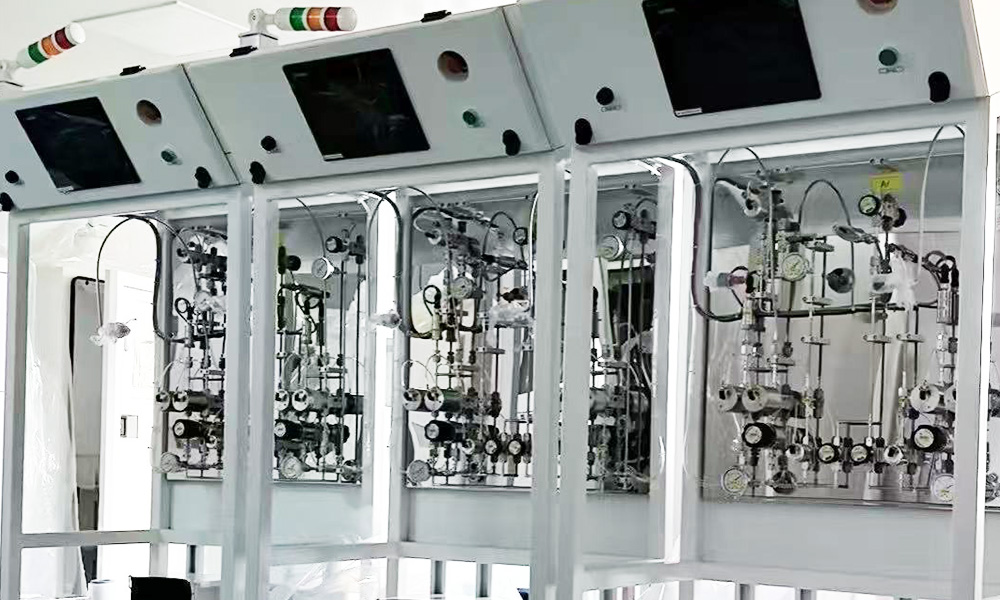

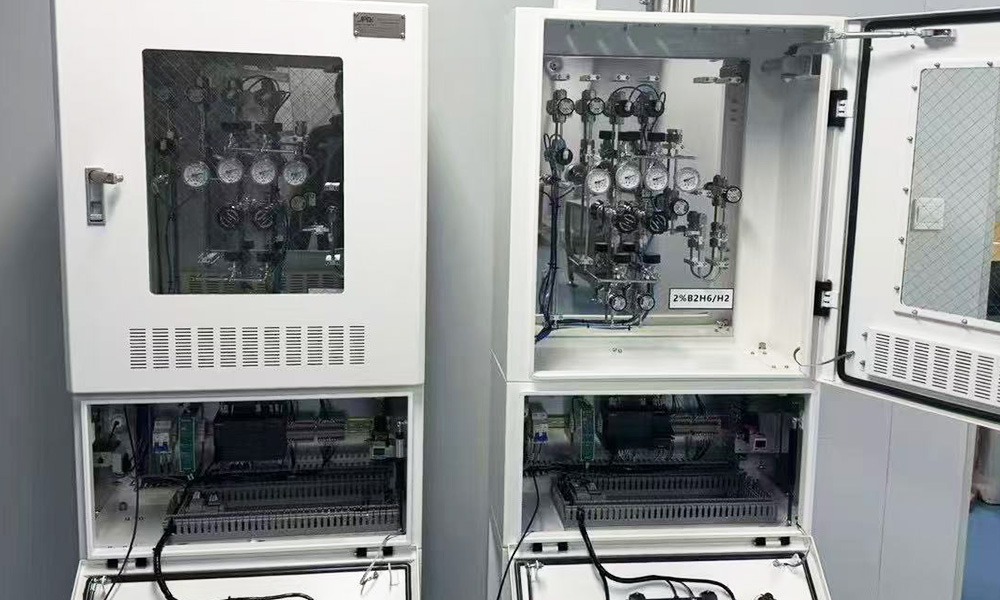

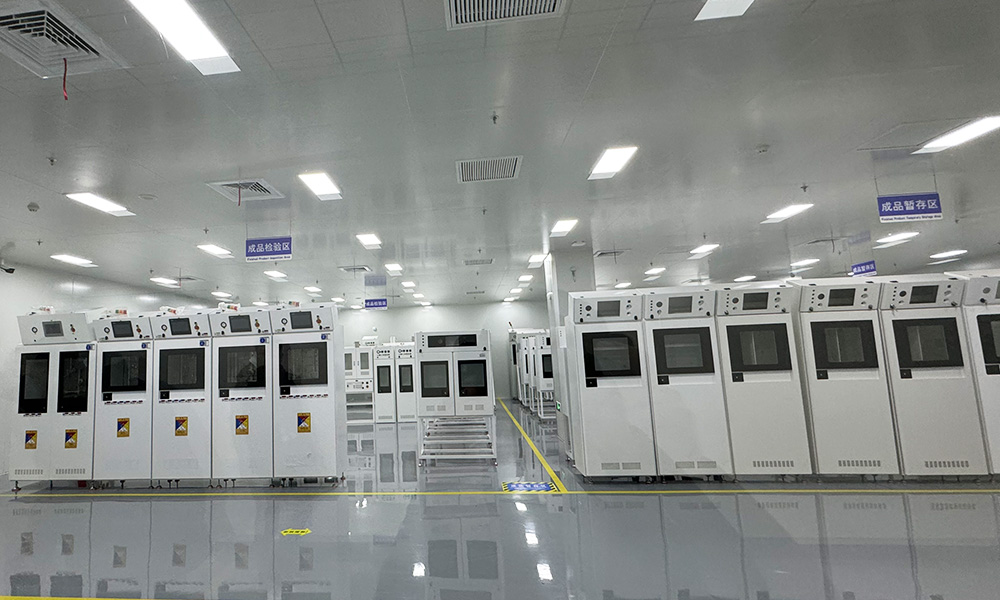

Product drawings and technical images
