JR1000 UHP Single-Stage Gas Pressure Regulator is part of LGF’s high-purity gas pressure control equipment range for reducing source pressure to a controlled delivery pressure. The uhp single-stage gas pressure regulator configuration should be compared with the specified gas, pressure and flow before it is added to the equipment schedule.
Technical details from the product listing

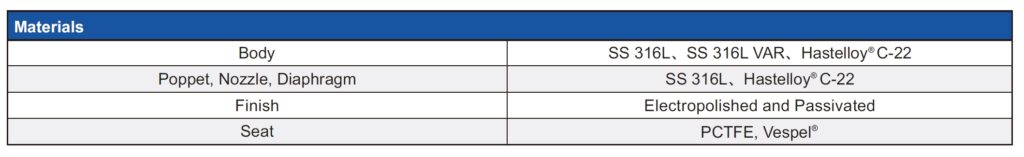

- Body material: SS 316L, SS 316L VAR.
- Internal electrolytic polishing, with a smoothness of up to Ra 5 μin.

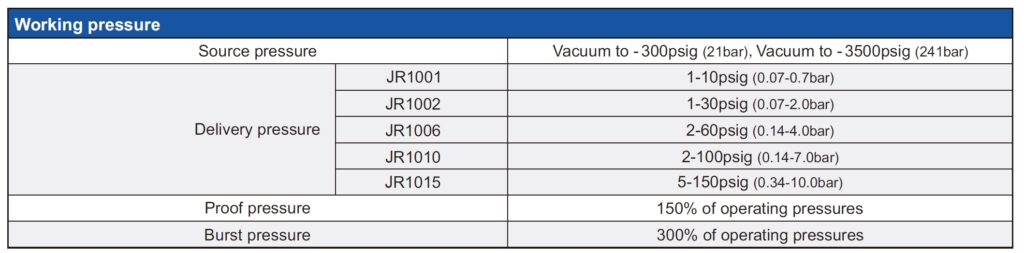

- The inlet pressure can reach 3500psig.

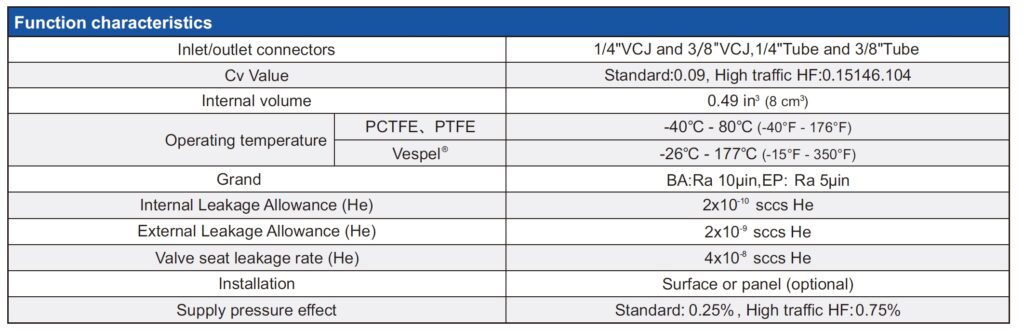

- Flow coefficient Cv: 0.09 and 0.15.
- Maximum flow rate, standard: 30 SLPM, high flow HF: 120 SLPM.
What to confirm for your laboratory gas system
Confirm the exact JR1000 ordering code and available options against the current product drawing before purchase. Selection depends on the complete gas path, the operating conditions and the installation interface.
- Gas compatibility and wetted materials
- Maximum inlet and adjustable outlet pressure
- Required flow and Cv
- Connection, mounting and cleaning requirements
For an application-specific quotation, provide the gas or media, source condition, target pressure and flow, end connection and project location. Review the related selection and system guidance, then send LGF your specification.

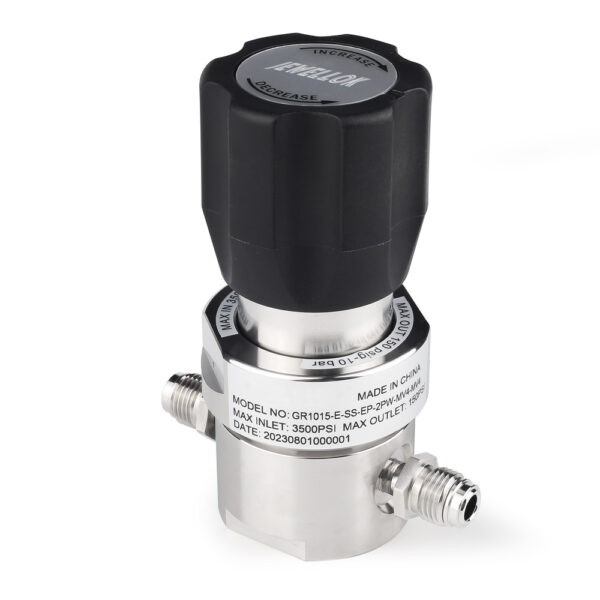

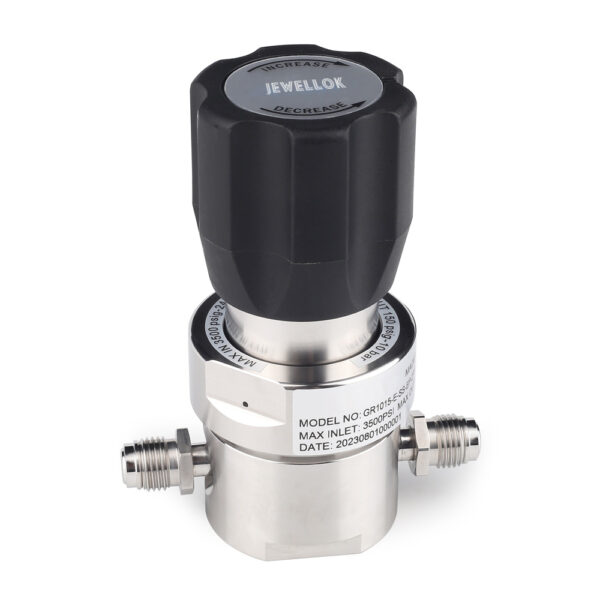

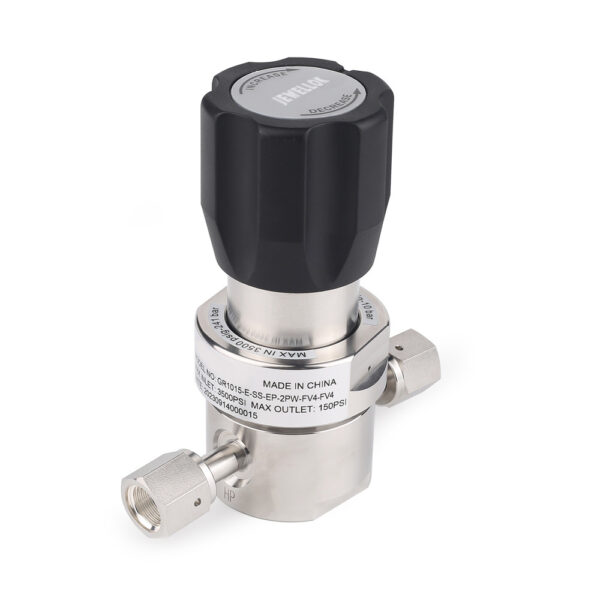

Product drawings and technical images
