High-Purity Mini Tube Butt-Weld Fittings is part of LGF’s high-purity laboratory gas piping component range for connecting, routing or protecting a stainless-steel gas distribution line. This weld fitting supports a permanent tube connection; confirm the weld-end dimensions and the planned orbital-welding procedure.

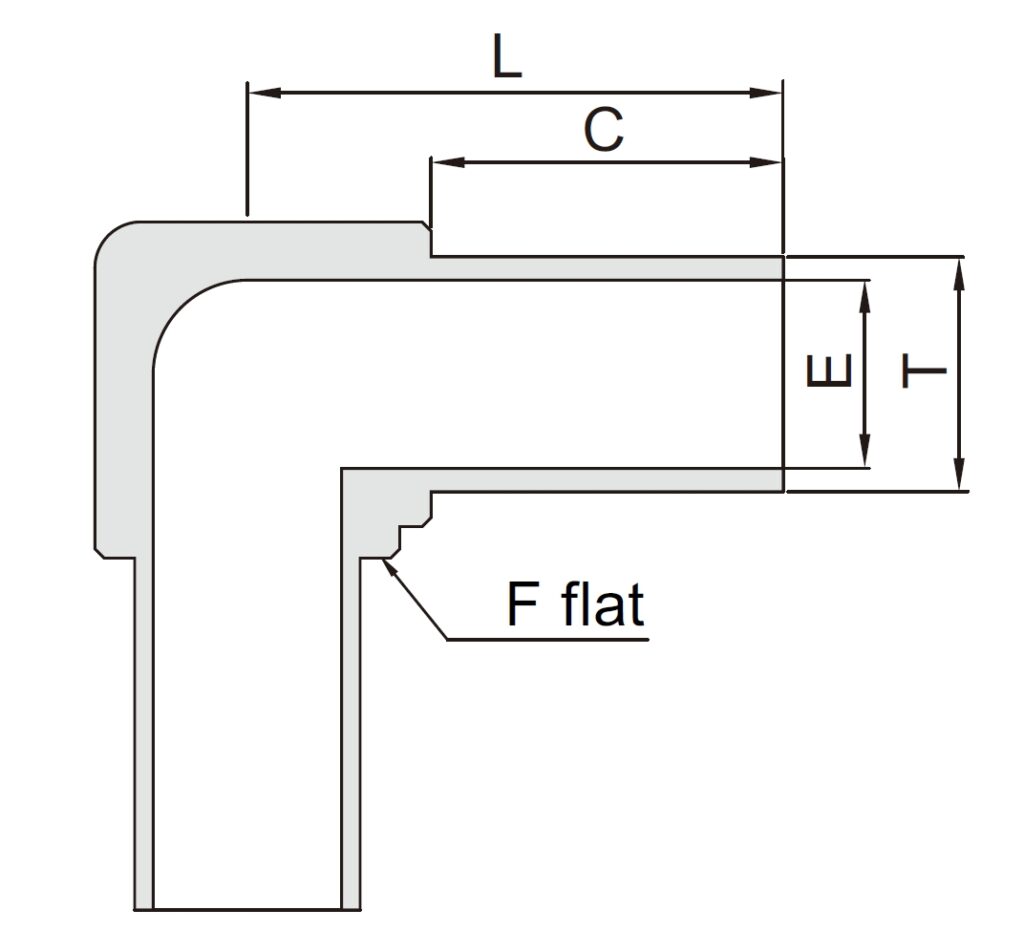

Product drawing and available configuration

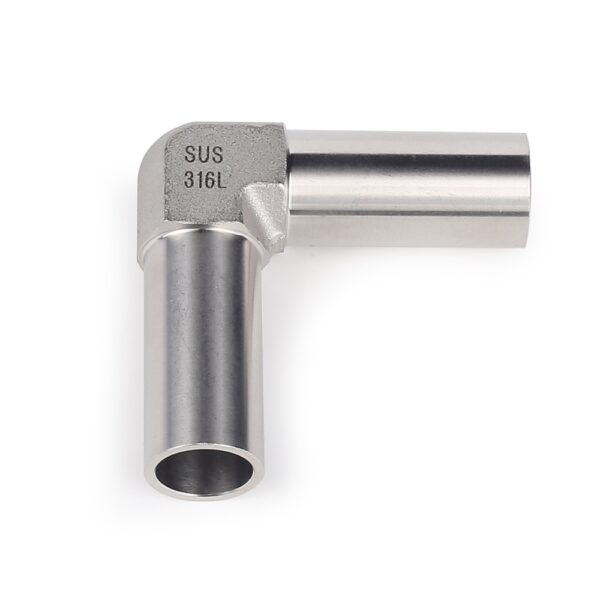

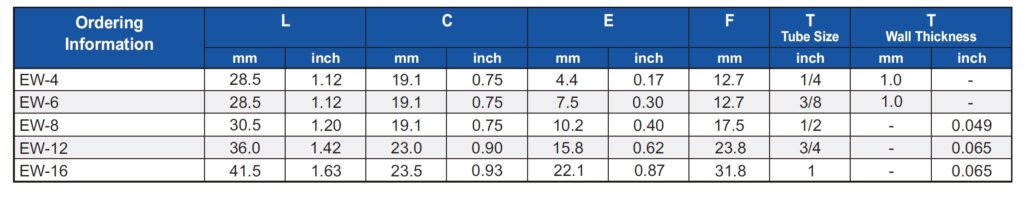

The source listing provides product photographs or dimensional drawings for this configuration. Review the image set together with the current datasheet to confirm the exact dimensions, end connections and material before specifying a part.
What to confirm for your laboratory gas system
Confirm the exact configuration and ordering code against the current product drawing before purchase. Selection depends on the complete gas path, the operating conditions and the installation interface.
- Tube size and dimensional standard
- End connections and mating parts
- Material grade and surface finish
- Installation, cleaning and leak-test method
For an application-specific quotation, provide the gas or media, source condition, target pressure and flow, end connection and project location. Review the related selection and system guidance, then send LGF your specification.

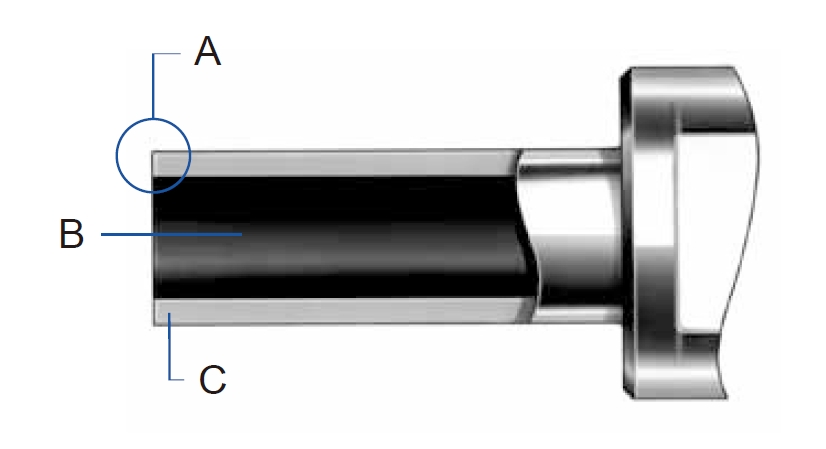

Product drawings and technical images
